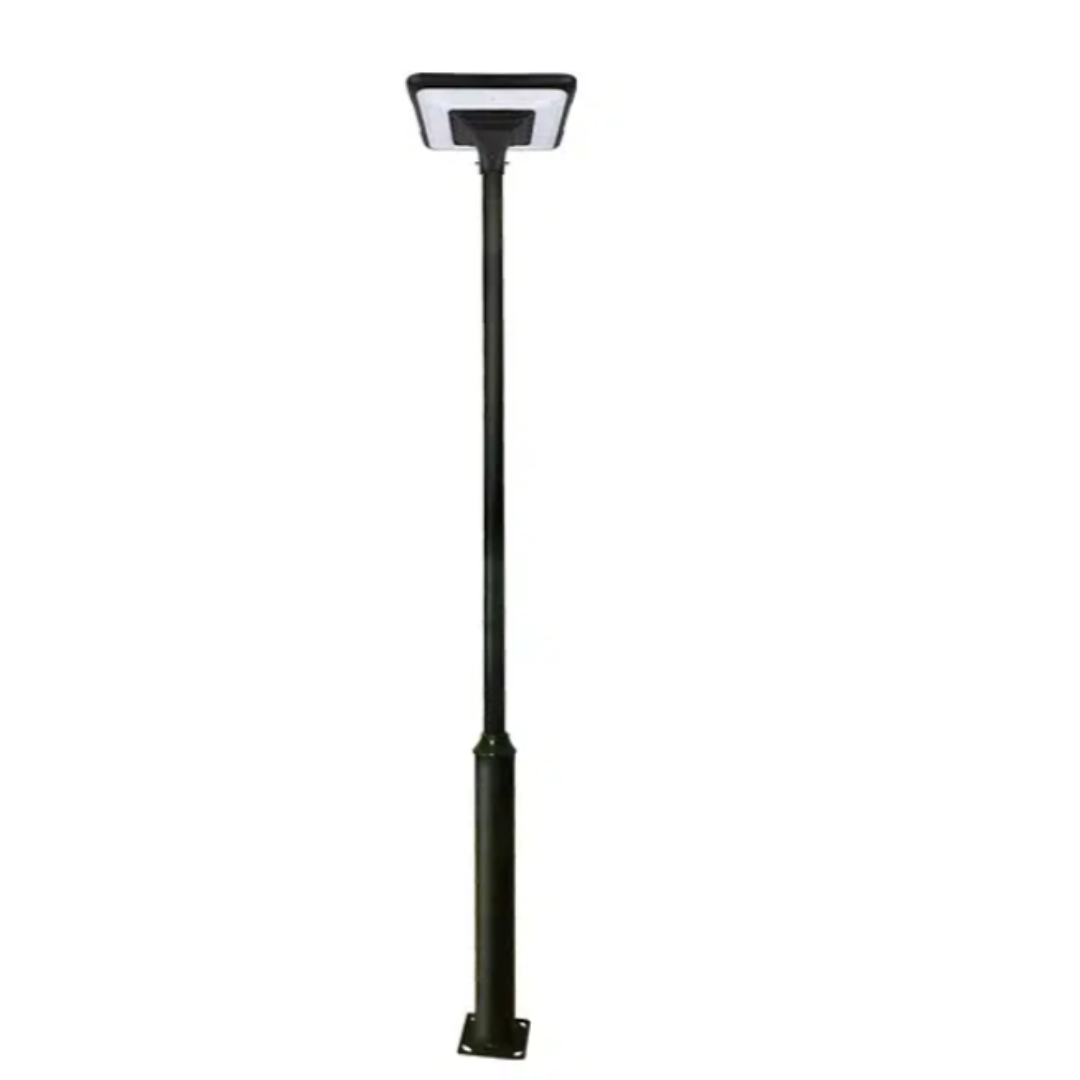

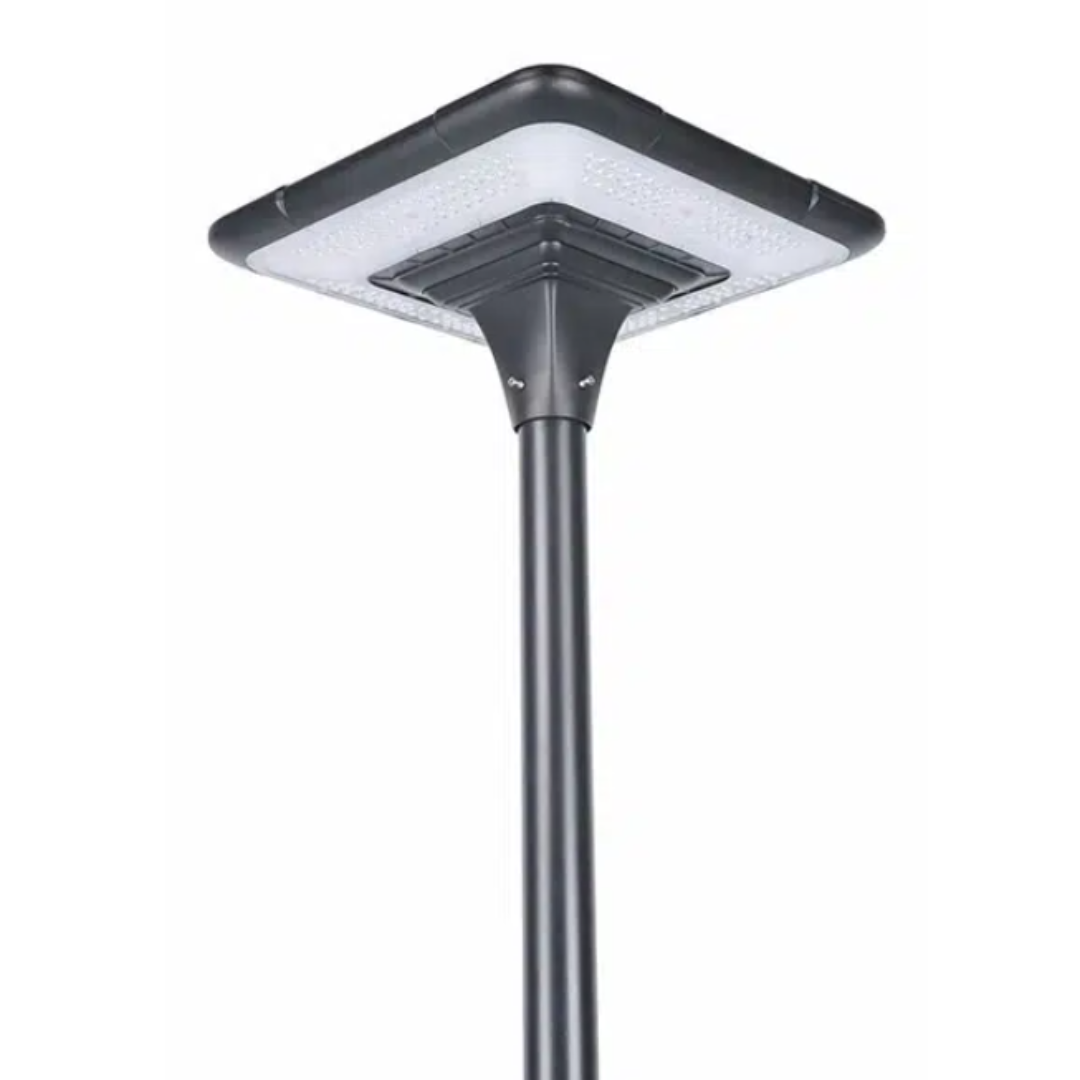

SOLAR DECORATIVE MSL SDGSL (WITHOUT POLE)
SOLAR DECORATIVE MSL SDGSL (WITHOUT POLE)
SOLAR DECORATIVE MSL SDGSL
Technical Specifications
Led power- 30W
Luminous flux- 4,500LM
Solar panel- 45W/5V
Lithium battery- 3.2V/ 60AH
Fixture color- Black
Color temperature- 6000K
Housing material- Die-cast aluminum, glass, polycarbonate
Beam Angle- 360֯
Color rendering index- CRI˃80
Working temp - (-25C ֯~ +50C ֯/ 13F ~ 122F)
Recommend Installation Height- (3.5-5m / 11.48’-16.40’)
IP rate- IP65
Fixture Dimensions- 580x580x255MM
22.83”x22.83”x10.03”
Operation Profile
Depend on solar radiation
Automatically dusk to dawn
1hr- 100% output, 3hrs- 70% output, 3hrs- 50% output, 5hrs- 20% output
Measurements
Installation Instruction
1.Remove the Screw on the light fixture
2.Put the light on the lamp pole
3.The screw alignment hole
4.Tightening the screw
The light fixtures should be installed in an unshaded area for maximum performance
For use in dark locations at night time
Fastening screws included for mounting light fixture to an existing pole
Installation height is between 3.5-5m / 11.48’-16.40’ poles
Easy to install in 5 mins
Download Specsheet
2 Years Warranty By MSL
