FLOOD LIGHT MSL VFL T4

FLOOD LIGHT MSL VFL T4

Download Specsheet

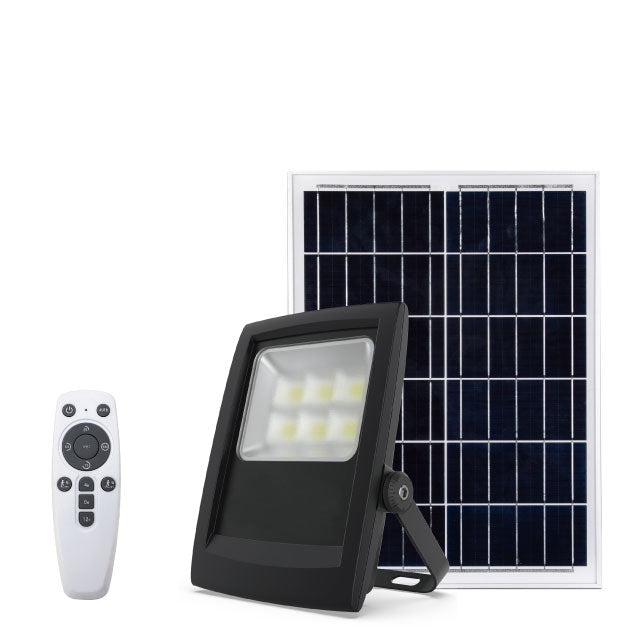

Our Solar Flood Light is the perfect eco-friendly solution
for outdoor illumination. Ideal for security, garden, and patio lighting

Key Features

High-Efficiency Solar Panel: Absorbs sunlight during the day for night-time power

Bright LED Light: Super bright LEDs provide intense illumination

Automatic Operation: Turns on at dusk and off at dawn

Weather-Resistant: IP65 waterproof for all-weather durability

Easy Installation: No wiring needed, mount with included hardware

Applications

Security Lighting

Garden Lighting

Patio and Deck Lighting

Eco-Friendly and Cost-Effective

Energy Saving: Reduces electricity costs with solar power

Low Maintenance: Durable and long-lasting LEDs

Technical Specifications
Led power  9W
Luminous flux 1,280LM
Fixture dimension 305*235*56MM
12”*9.25”*2.20”
Solar panel  25W/10V
Lithium battery 6.4V 38.4WH
Fixture color Black
Color temperature 6000K
Housing material Aluminum die casting
Motion Sensor Motion sensor detected
Operation profile 4H/ 6H/ 12H Depend on solar radiation
Remote control 2.4G radio remote
Charging time 4.5 hours
Discharging time >15 hours
Working temp.-15C ~ +70C / 5F ~158F
Connect cable 4.5 m / 14.7’
IP rate IP65
Certificates CE ROHS, CB



 Applications Guide
 Villas
 Hotels
 Resident communities
 Gardens
 Temporary Tent Lighting
 Kiosks
 Bus Stations

Installation Manual
Before Installation We recommend you always try to install this solar floodlight a place where the solar panel is exposed to direct sunlight in order to achieve maximum performance
The working time of the solar floodlight is directly related to the solar panel's exposure to sunlight
The performance will be affected by weather and season
Under manual mode, this light can also work in the day time when the solar panel is charging the light
This function is designed to provide lighting to the places where there is never daylight, like warehouses , wine caves etc
Please do not forget to clear the solar panel after a while when it gets dirty

Remote control
The remote control is used to adjust the lighting power and time as you require, in
summer time or your local sunshine is great all the year-round, then you can use
with 75% or 100% power, otherwise, you can use 50% even 25% power to save
energy of battery, Also you can set the working time which can be last 4 hours, 6 hours 12 hours, etc
Meanwhile, the motion detection functions are available which you can use it as asecurity light
Function 1is light will be off and only turn on with100%power and last 1min when it detects movement, function 2is light work with 100% power when there is detection from working with 30% power when no detection
Different from PIR remote, this is a 2.4G remote is more sensititve and no need to point at the light when you use it , the distance from remote to light can be up to 10 m/32.80’inopen-airarea



 Common troubleshot


Remark
1. Brightness level of the floodlight must be set before choosing operational times
(4h,6h or 12 hours)
2. Motion sensor option is unavailable when setting a specific lighting output
(25%, 50%,75%
